ADL-63102TL-3
635nm 10mW Red Laser Diode, 50℃ Reliable Operation/ 雷射二極體
特色
- 高見度高 (10mW)
- 於 50℃時，輸出功率穩定度較佳
- Z: 1380um
應用
- 雷射量測工具/ 雷射水平測量儀/ 雷射測距儀
- 照明/雷射簡報筆
- 感測器/ 傳感器/ PM 2.5偵測器
- 醫美醫療儀器/ 雷射生髮帽
ADL-63102TL-3
635nm 10mW Red Laser Diode, 50℃ Reliable Operation/ 雷射二極體
特色
應用
Absolute maximum ratings
| Parameter | Symbol | Condition | Rating | Unit |
|---|---|---|---|---|
| Light output power | Po | CW | 12 | mW |
| Case temperature | Tc | - | -10~+50 | °C |
| Storage temperature | Ts | - | -40~+85 | °C |
Electrical and optical characteristics (Tc=25∘C)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Peak wavelength | λ | 630 | 637 | 640 | nm | |
| Threshold current | Ith | - | 35 | 40 | mA | |
| Operation current | Iop | - | 55 | 65 | mA | |
| Operating voltage | Vop | 2 | 2.2 | 2.5 | V | |
| Differential efficiency | η | 0.25 | 0.6 | 0.85 | mW/mA | |
| Monitor current | Im | 0.05 | 0.12 | 0.5 | mA | |
| Parallel divergence angle | θ// | 6 | 7.5 | 11 | deg. | |
| Perpendicular divergence angle | θ⊥ | 30 | 33 | 40 | deg. | |
| Parallel FFP deviation angle | Δθ// | -2 | 0 | +2 | deg. | |
| Perpendicular FFP deviation angle | Δθ⊥ | -2 | 0 | +2 | deg. | |

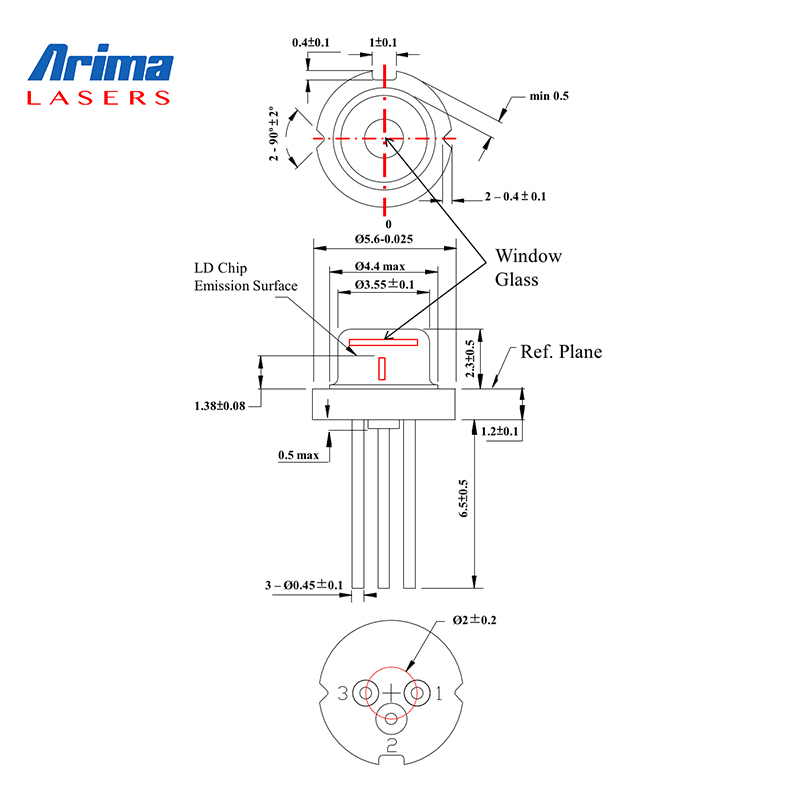

| Emission point accuracy | ΔxΔyΔz | -80 | 0 | +80 | um |
