ADL-66505TM
660nm 50mW Laser Diode/ 激光二极管
特色
- 660nm 50mW激光二极管于60°C 温度中，功率稳定度高
- 组成模组可节省空间与成本

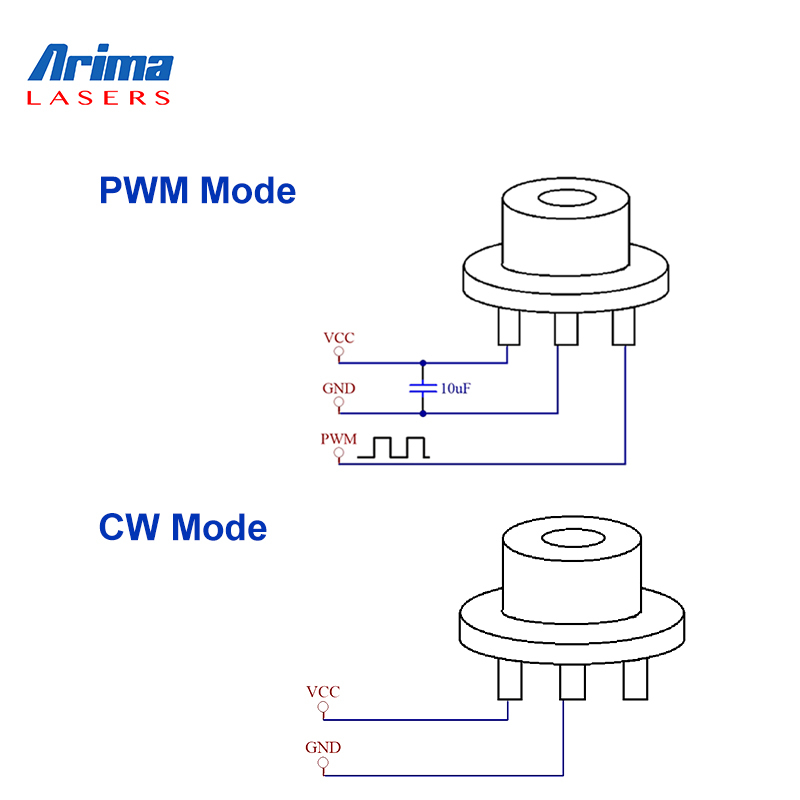

- 电压驱动LD，简易便利
- 高度稳定的激光输出功率
- 反向偏置防护
- 高ESD可持续性电压
- 短路保护
- 电源反接保护
应用
- 激光量测工具/ 激光水平测量仪/ 激光测距仪
- 照明/激光简报笔
- 感测器/ 传感器/ PM 2.5侦测器
- 医美医疗仪器/ 激光健发帽/ 激光健发梳
ADL-66505TM
660nm 50mW Laser Diode/ 激光二极管
特色
应用
Absolute maximum ratings
| Parameter | Symbol | Condition | Rating | Unit |
|---|---|---|---|---|
| Light output power | Po | - | 50 | mW |
| Case temperature | Tc | - | -10~+60 | °C |
| Storage temperature | Ts | - | -40~+85 | °C |
Electrical and optical characteristics (Tc=25∘C)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Peak wavelength | λ | 653 | 660 | 667 | nm | Po=50mW，Vcc=3V |
| Operation current | Iop | - | 93 | 120 | mA | Po=50mW，Vcc=3V |
| Parallel divergence angle | θ// | 6 | 9 | 13 | deg. | Po=50mW，Vcc=3V |
| Perpendicular divergence angle | θ⊥ | 13 | 17 | 22 | deg. | Po=50mW，Vcc=3V |
| Parallel FFP deviation angle | Δθ// | -3.0 | 0 | +3.0 | deg. | Po=50mW，Vcc=3V |
| Perpendicular FFP deviation angle | Δθ⊥ | -3.0 | 0 | +3.0 | deg. | Po=50mW，Vcc=3V |
| Emission point accuracy | ΔxΔyΔz | -80 | 0 | +80 | um | Po=50mW，Vcc=3V |
* Effective heat sink is recommended on 6V case due to extra heat
