ADL-65077SU
650nm 7mW Laser Diode φ3.3mm
FEATURES
- Smallest package
- Low operating current
- Higher power
APPLICATION
- Super slim DVD/Combo OPU
- Mini size optical modules
- Laser sensor

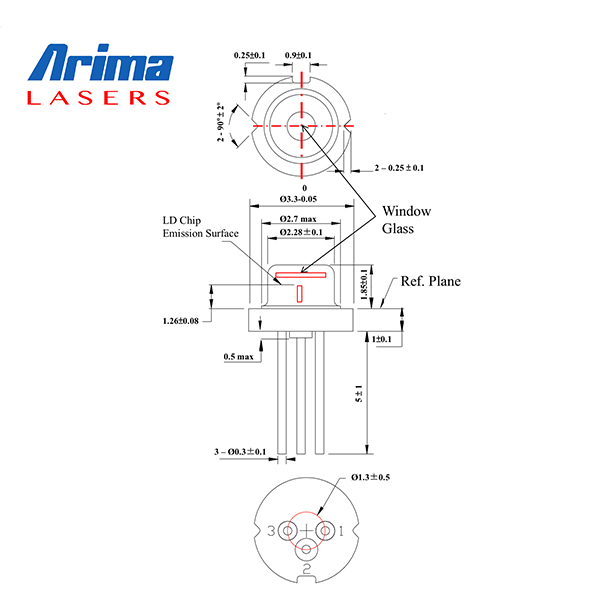

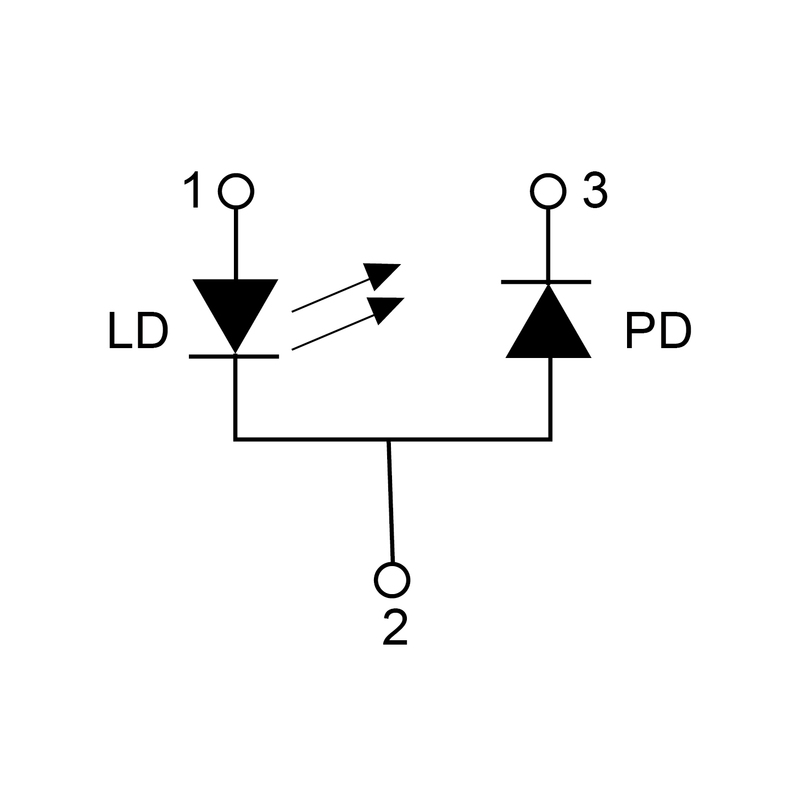

ADL-65077SU
650nm 7mW Laser Diode φ3.3mm
FEATURES
APPLICATION
Absolute maximum ratings
| Parameter | Symbol | Condition | Rating | Unit |
|---|---|---|---|---|
| Light output power | Po | CW | 10 | mW |
| Case temperature | Tc | - | -10~+70 | °C |
| Storage temperature | Ts | - | -40~+85 | °C |
Electrical and optical characteristics (Tc=25∘C)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Peak wavelength | λ | 645 | 655 | 660 | nm | Po=7mW，Vcc=3V |
| Threshold current | Ith | - | 20 | 25 | mA | |
| Operation current | Iop | - | 25 | 35 | mA | Po=7mW |
| Operating voltage | Vop | - | 2.2 | 2.5 | V | Po=7mW |
| Differential efficiency | η | 0.7 | 0.9 | 1.2 | mW/mA | Po=3-5mW |
| Monitor current | Im | 0.3 | 0.4 | 0.6 | mA | Po=7mW，Vcc=3V |
| Parallel divergence angle | θ// | 6 | 9 | 12 | deg. | Po=7mW |
| Perpendicular divergence angle | θ⊥ | 25 | 28 | 32 | deg. | Po=7mW |
| Parallel FFP deviation angle | Δθ// | -2 | 0 | +2 | deg. | Po=7mW |
| Perpendicular FFP deviation angle | Δθ⊥ | -2 | 0 | +2 | deg. | Po=7mW |
| Emission point accuracy | ΔxΔyΔz | -80 | 0 | +80 | um | Po=7mW |
