ADL-65103TL
650nm 10mW Laser Diode

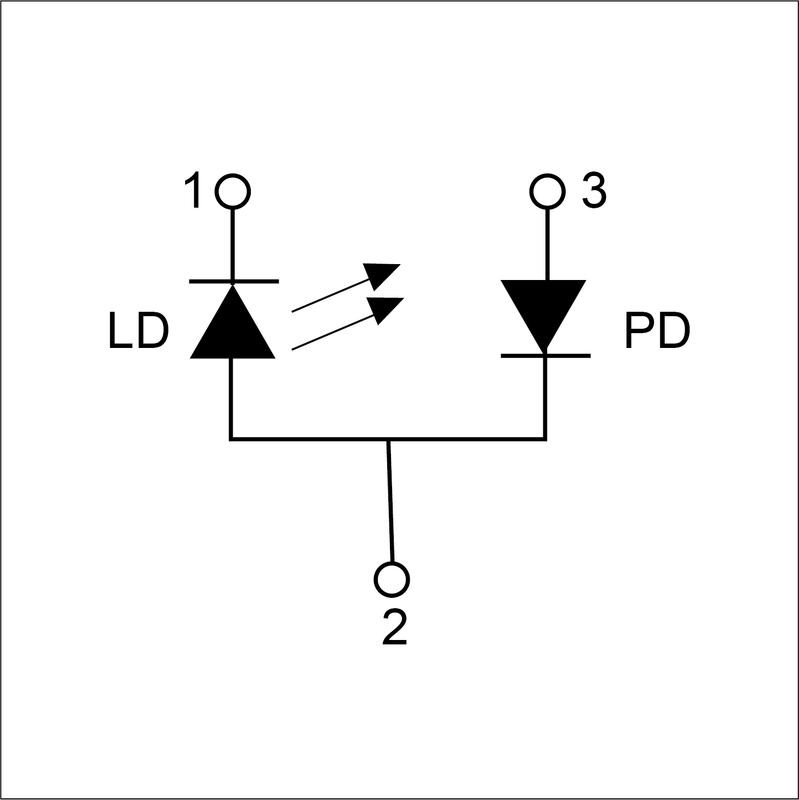

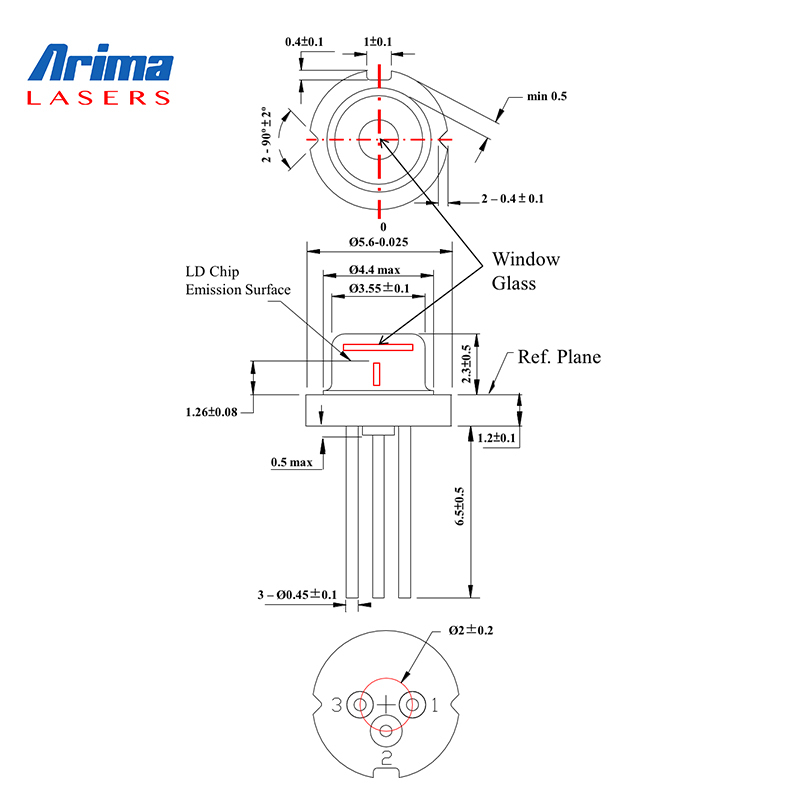

FEATURES
APPLICATION
Absolute maximum ratings
| Parameter | Symbol | Condition | Rating | Unit |
|---|---|---|---|---|
| Light output power | Po | - | 13 | mW |
| Case temperature | Tc | - | -10~+50 | °C |
| Storage temperature | Ts | - | -40~+85 | °C |
Electrical and optical characteristics (Tc=25∘C)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Peak wavelength | λ | 645 | 650 | 660 | nm | Po=10mW |
| Threshold current | Ith | - | 20 | 25 | mA | |
| Operation current | Iop | - | 31 | 40 | mA | Po=10mW |
| Operating voltage | Vop | - | 2.2 | 2.5 | V | Po=10mW |
| Differential efficiency | η | 0.7 | 0.9 | 1.2 | mW/mA | Po=7-10mW |
| Monitor current | Im | 0.1 | 0.3 | 0.4 | mA | Po=10mW, Vcc=5V |
| Parallel divergence angle | θ// | 6 | 9.5 | 12 | deg. | Po=10mW |
| Perpendicular divergence angle | θ⊥ | 25 | 28 | 32 | deg. | Po=10mW |
| Parallel FFP deviation angle | Δθ// | -2 | 0 | +2 | deg. | Po=10mW |
| Perpendicular FFP deviation angle | Δθ⊥ | -2 | 0 | +2 | deg. | Po=10mW |
| Emission point accuracy | ΔxΔyΔz | -80 | 0 | +80 | um | Po=10mW |
