FEATURES

1. 650nm 10mW 50°C highly reliable operation
2. Saving space and cost of laser module

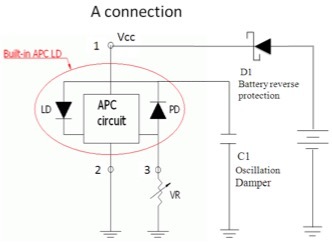

3. Voltage driven LD, easy to use
4. Highly stable laser output power
5. Strong reverse bias protection
6. Reliable high temperature operation
7. High ESD sustainability voltage,~10KV
8. Broad bandwidth from blue to infrared
9. High power operation vs. Supply current up to 300mA
10. Stable output power vs. Supply voltage from 2.5V to 6.0V.
11. Light-fuse: automatic shutdown when output power over the limit

APPLICATION

1. Laser measurement tool / laser level measuring instrument / laser distance meter
2. Lighting/laser pointer
3. Optical fiber communication system
4. Laser printer
5. Sensor/ PM 2.5 detector
6. Beauty equipment and medical equipment / Laser hair cap / Laser hair comb
