ADL-78101SL

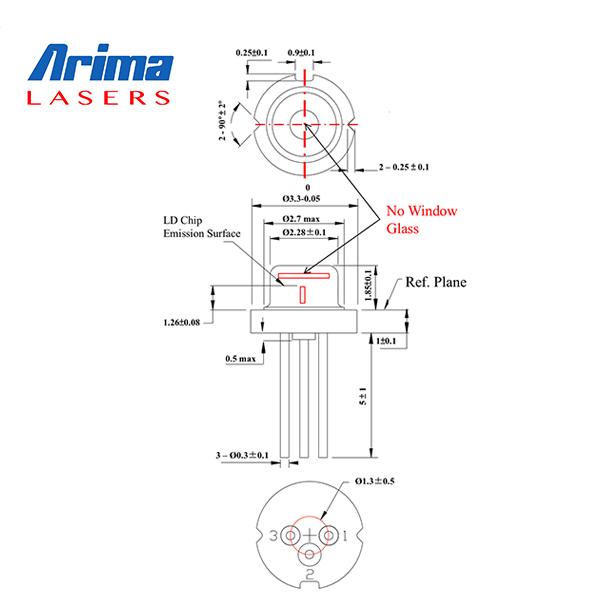

780nm 10mW Φ3.3mm Laser Diode, 60℃ Reliable Operation
FEATURES
APPLICATION
Absolute maximum ratings
| Parameter | Symbol | Condition | Rating | Unit |
|---|---|---|---|---|
| Light output power | Po | CW | 12 | mW |
| Case temperature | Tc | - | -10~+60 | °C |
| Storage temperature | Ts | - | -40~+85 | °C |
Electrical and optical characteristics (Tc=25∘C)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Peak wavelength | λ | 770 | 780 | 790 | nm | Po=10mW |
| Threshold current | Ith | - | 15 | 25 | mA | |
| Operation current | Iop | - | 30 | 40 | mA | Po=10mW |
| Operating voltage | Vop | - | 1.9 | 2.2 | V | Po=10mW |
| Differential efficiency | η | 0.4 | 0.6 | 0.8 | mW/mA | Po=7-10mW |
| Monitor current | Im | 0.5 | 1.0 | 1.5 | mA | Po=10mW |
| Parallel divergence angle | θ// | 7 | 11 | 15 | deg. | Po=10mW |
| Perpendicular divergence angle | θ⊥ | 24 | 28 | 32 | deg. | Po=10mW |
| Parallel FFP deviation angle | Δθ// | -2 | 0 | +2 | deg. | Po=10mW |
| Perpendicular FFP deviation angle | Δθ⊥ | -2 | 0 | +2 | deg. | Po=10mW |
| Emission point accuracy | ΔxΔyΔz | -80 | 0 | +80 | um | Po=10mW |
