ADL-63059TU

ADL-63059TU

635nm 5mW Laser Diode

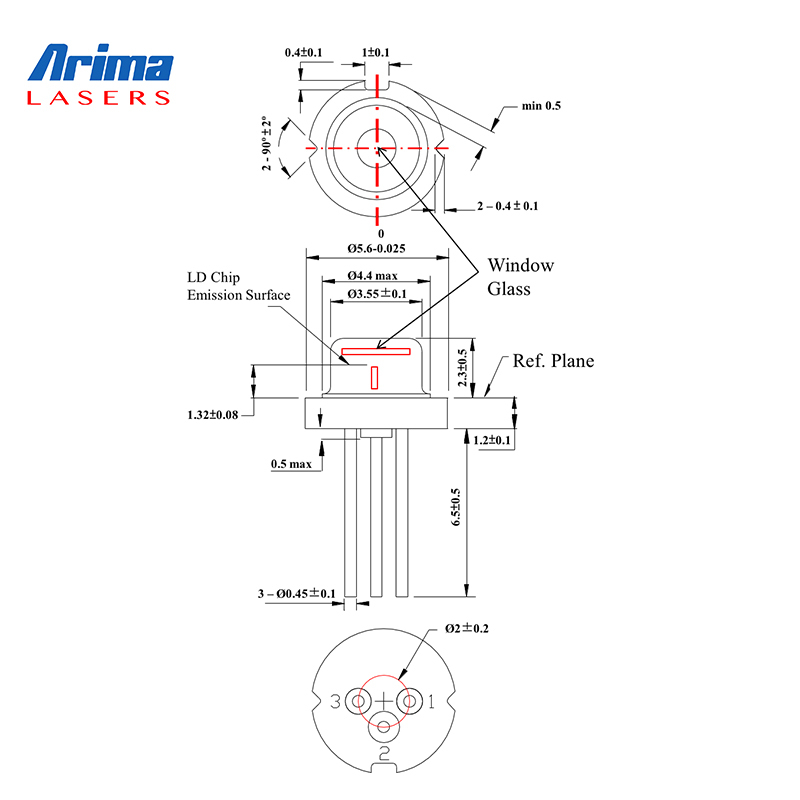

FEATURES

  1. Low Iop
  2. High Precision assembly
  3. High visibility

APPLICATION

  1. General purpose red laser light source
  2. Industrial laser markers/ measuring instruments
  3. Laser pointers/ Levelers

DOWNLOAD

Absolute maximum ratings

Parameter Symbol Condition Rating Unit
Light output power Po CW 6 mW
Case temperature Tc -10~+50 °C
Storage temperature Ts -40~+85 °C

Electrical and optical characteristics (Tc=25∘C)

Parameter Symbol Min. Typ. Max. Unit Conditions
Peak wavelength λ 630 635 640 nm
Threshold current Ith - 19 23 mA
Operation current Iop - 29 32 mA
Operating voltage Vop - 2.15 2.3 V
Differential efficiency η 0.4 0.5 1.0 mW/mA
Monitor current Im 0.1 0.23 0.3 mA
Parallel divergence angle θ// 4.5 6.5 8.5 deg.
Perpendicular divergence angle θ 30 34 36 deg.
Parallel FFP deviation angle Δθ// -3 0 +3 deg.
Perpendicular FFP deviation angle Δθ⊥ -3 0 +3 deg.
Emission point accuracy ΔxΔyΔz -80 0 +80 um

* Monitor current ranking is available
